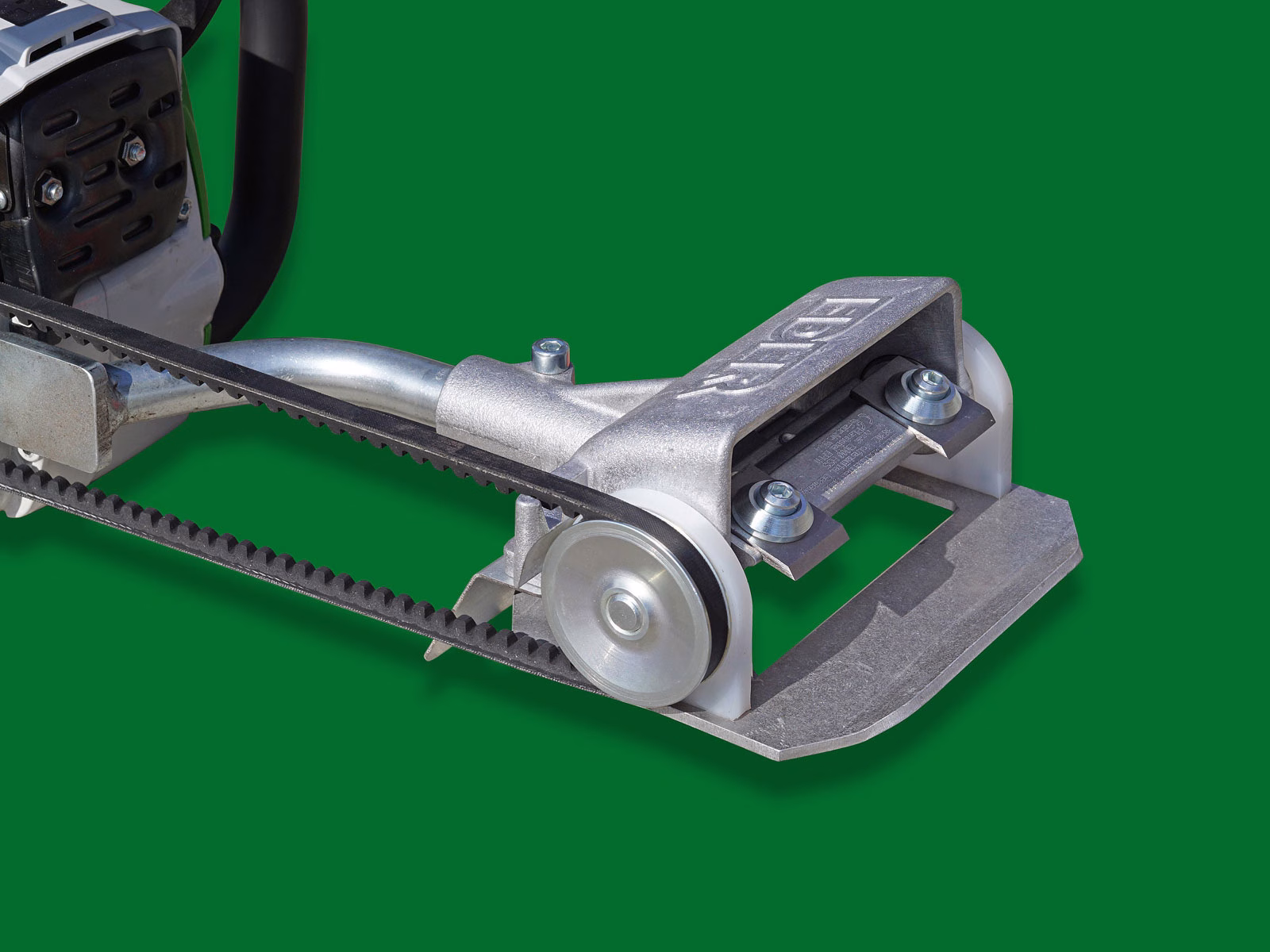

The EDER Flat Planer is designed for planning flat or round wood surfaces (from diameter of 30 cm).
The cylindrical design achieves high cutting performance with minimum effort.
The blades fastened on the rotating cylinder barrel are continuously adjustable.
This makes it possible to adjust the cutting radius as well as cutting depth to the desired chip thickness.
Four blades are distributed over two levels on the cylinder which create a smooth surface without any vibrations.
Weight without engine 2,5 kg
Weight with EDER-engine 8,3 kg
Min. required power 1,2 kW
Working width 120 mm
Blade width 30 mm
Number of Blades 4
Max. permissible speed 13.000 /1 min
