Description

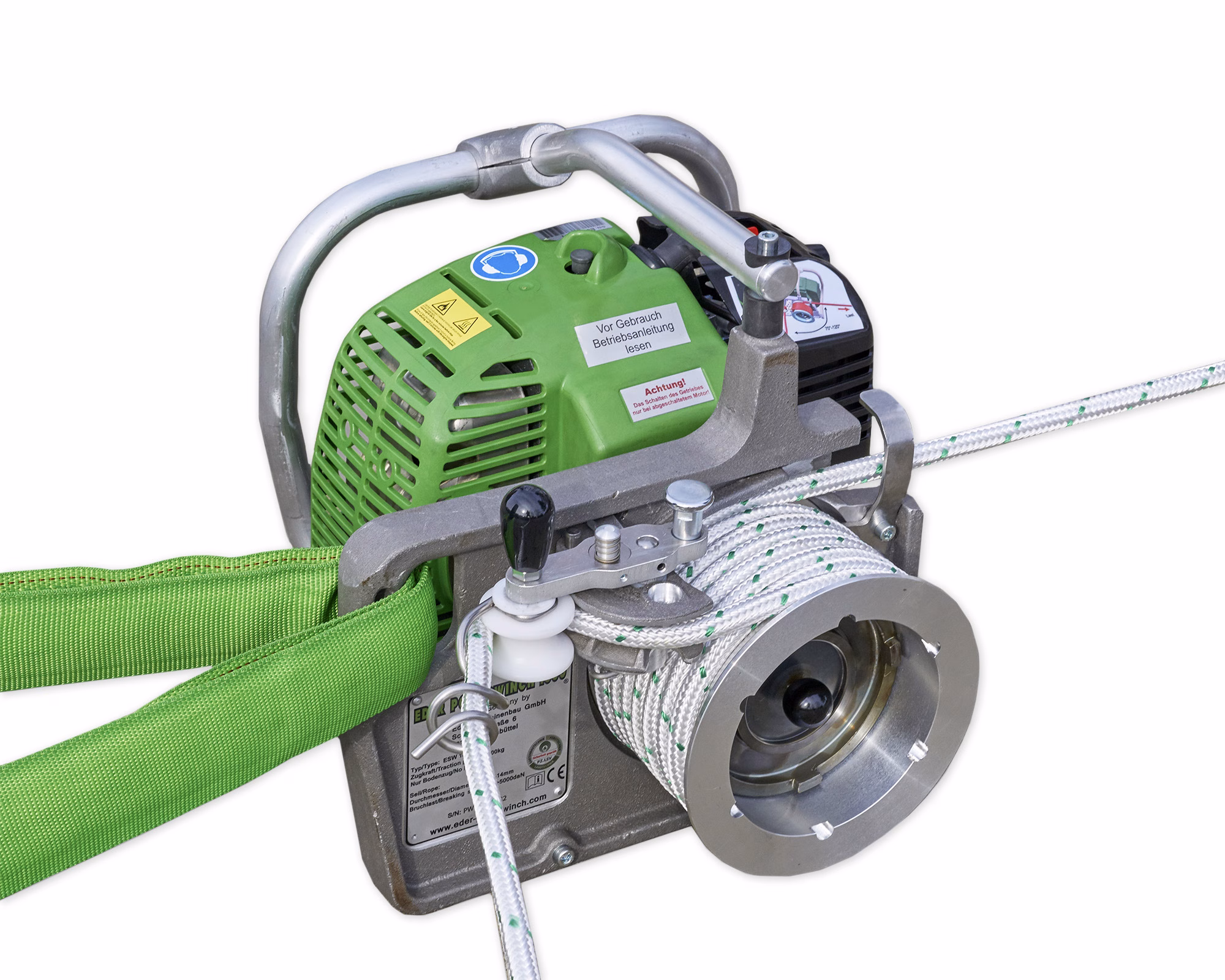

The EDER – Winch 1800 portable capstan winch is manufactured in Germany and is an incredible piece of precision engineering.
This winch is very popular amongst professional forestry workers, woodland owners and tree surgeons who are looking for the most powerful 2 stroke portable capstan winch available.
With a max rated capacity of 1800kg the EDER – Winch 1800 is the most powerful portable capstan winch on the UK market.
Using a pulley block the force can be doubled up to a massive 3600kg!
Advantages:
EDER – Winch 1800 is powered by a 65cc 2 stroke engine. This means it can run in any position including at steep angles. It uses the same 2-stroke mix as your chainsaw so you only carry one can of fuel into the woods.
Rope Brake
The rope brake ensures high safety during operation. As soon as the operator releases the rope, the winch will stop, as the rope is held by the brake. This prevents unintentional sliding back of the load, resulting in precise control over the movement of the load.
Gear shift
Using the gear shift, the ratio between power and speed can be adjusted as the situation demands
1st gear: 1800 kg load capacity at 12 m / min
2nd gear: 900 kg load capacity at 24 m / min
Centrifugal clutch – Capstan drum does not rotate at idle.
Automatic brake – stop pulling on the rope and the load is automatically held.
Automatic throttle – As you pull on the rope the throttle is automatically engaged.
Weight – weighs only 14kg.
This winch is not rated for lifting. If you need to lift with this winch consider adding the ISC Progress Capture Pulley Single (PCA-1271). Or you can swap to the Portable Winch Company – PCH1000 or Portable Winch Company – PCH2000.
Technical Data:
Maximum Pull: 1800kg
Weight: 14kg
Drum Speed: 12m/m or 24m/m
Engine: Active 65cc 2-Stroke
Throttle System: Automatic
Brake System: Automatic
