Description

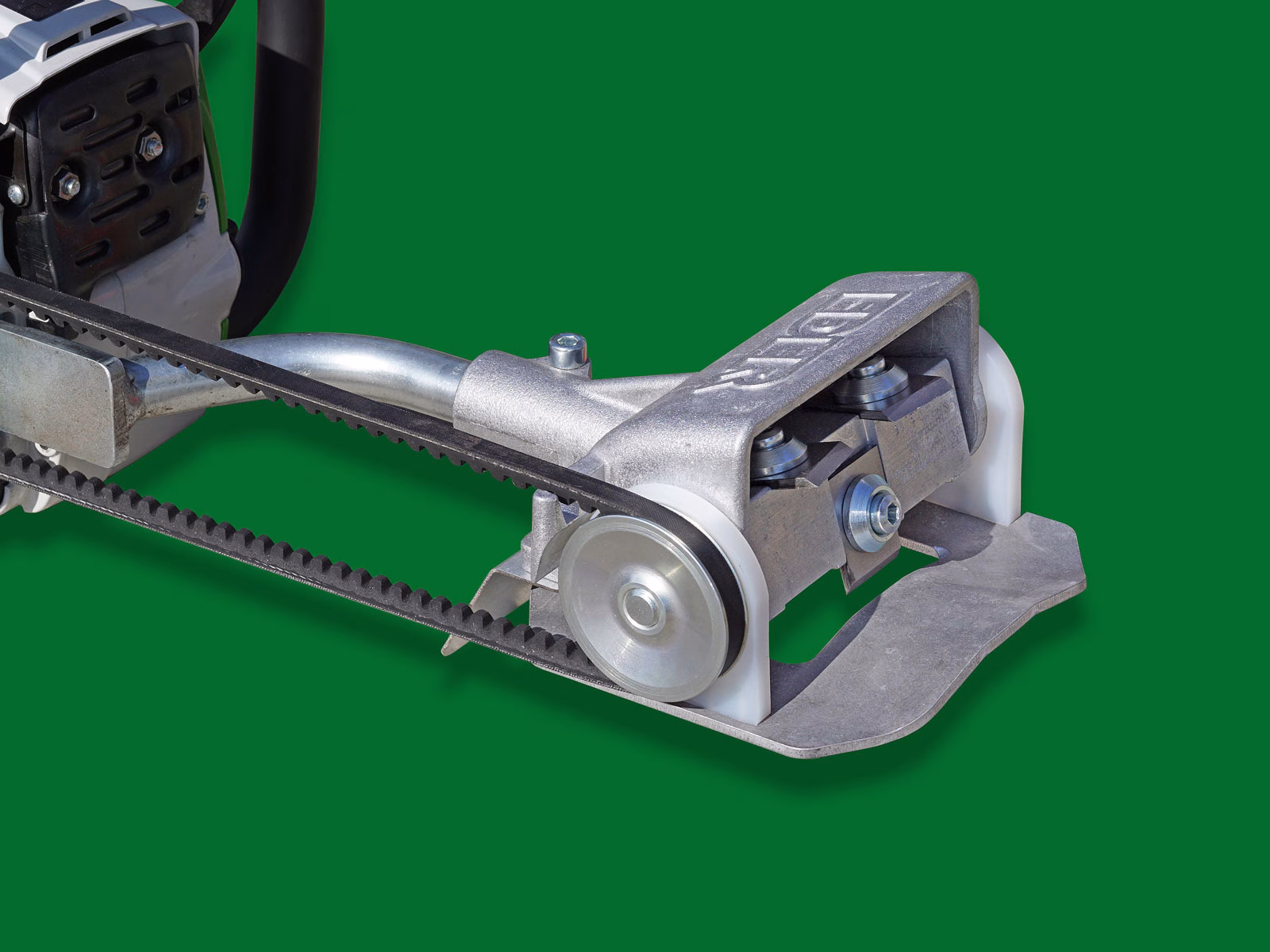

The EDER Curved Planer is designed for planing flat or round wood surfaces up to a diameter of 30 cm.
The design of the rotating cylinder achieves high cutting performance with minimum effort.
The blades fastened on to the rotating cylinder barrel are continuously adjustable.
This makes it possible to adjust the cutting radius as well as cutting depth to the desired chip thickness.
Four knives are distributed over two levels on the cylinder which create a smooth surface without any vibrations.
Technical Data:
Weight without engine 2,5 kg
Weight with EDER-engine 8,3 kg
Min. required power 1,2 kW
Working width 80 mm
Blade width 30 mm
Number of blades 6
Max. permissible speed 13.000 1/min
