Description

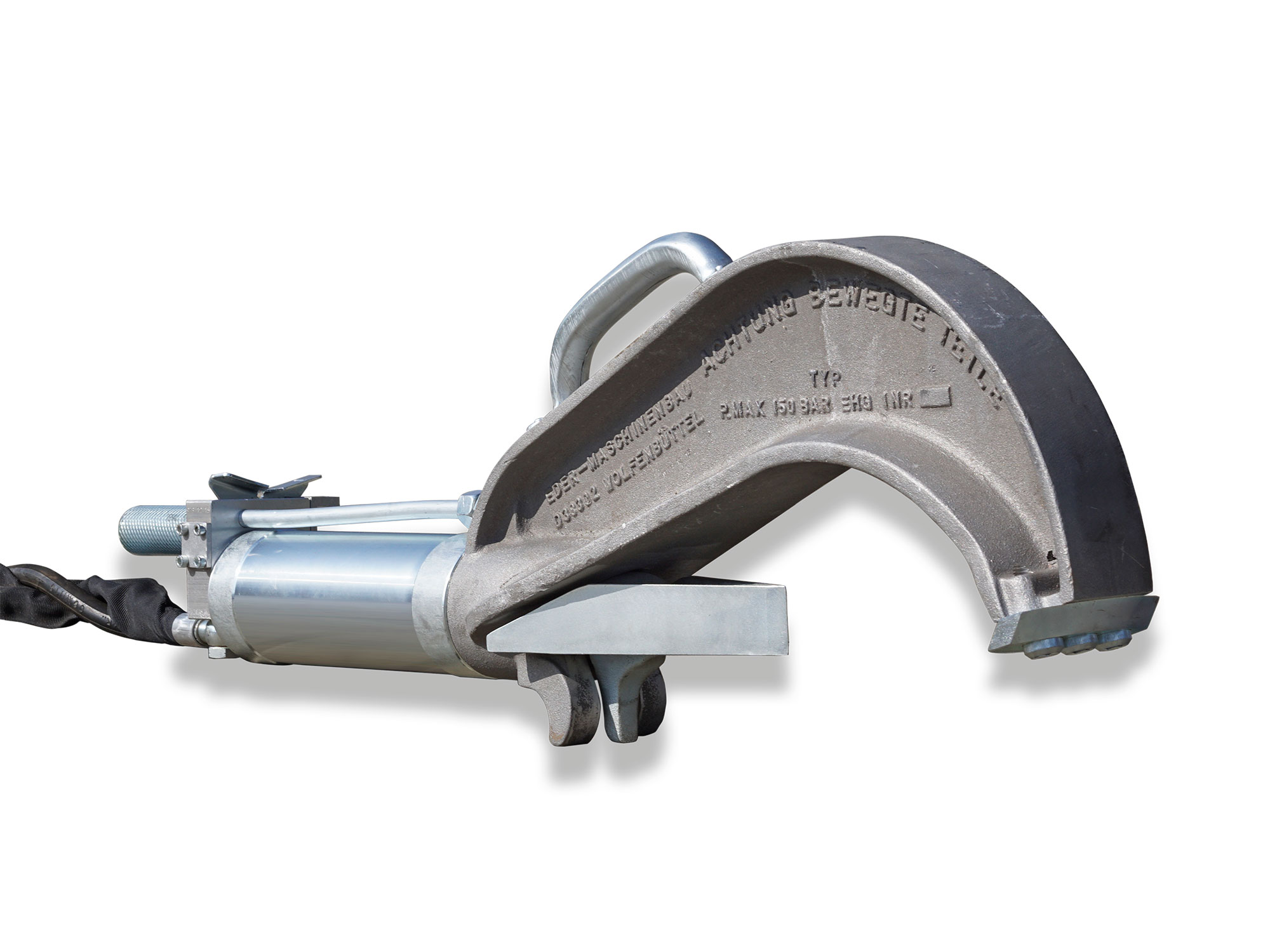

A hydraulic log splitter for splitting timber in position on the ground.
Key specifications
| Weight | 16 kg without hoses |
|---|---|
| Dimensions | 983 × 120 × 296 mm |
| Force on wedge | 75,000 N |
| Required oil pressure | 150 bar |
| Required minimum oil flow | More than 12 litres/min |
Compatibility
Requires a suitable tractor hydraulic supply or hydraulic power pack. For a system with an adjustable-flow pump, follow EDER’s specified setting of 20 litres/min. Confirm the hose and connection arrangement for your supply.
Manufacturer information

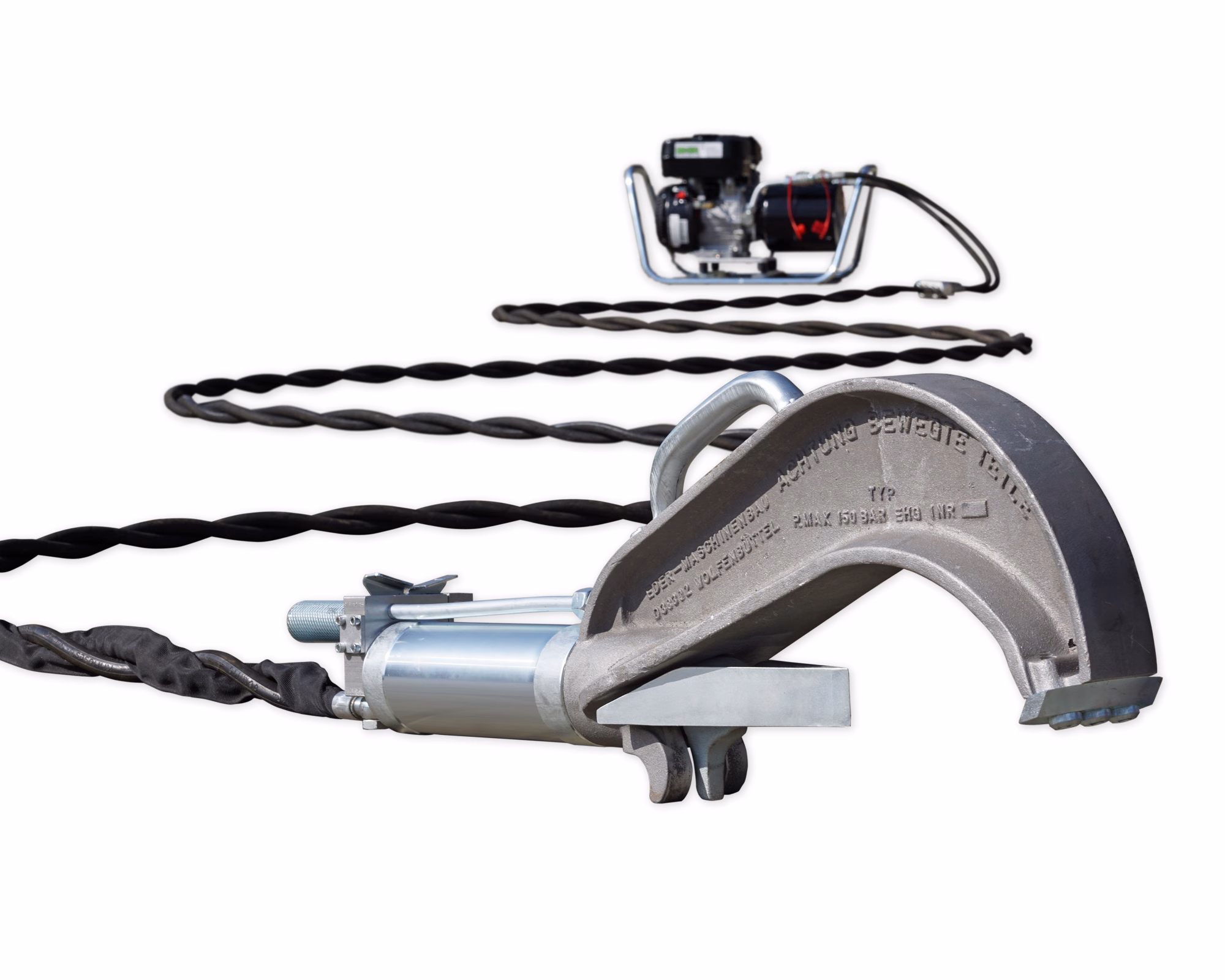

EDER-supplied images © EDER – Maschinenbau GmbH. Application and range photographs may show optional equipment; see supplied items.
