Description

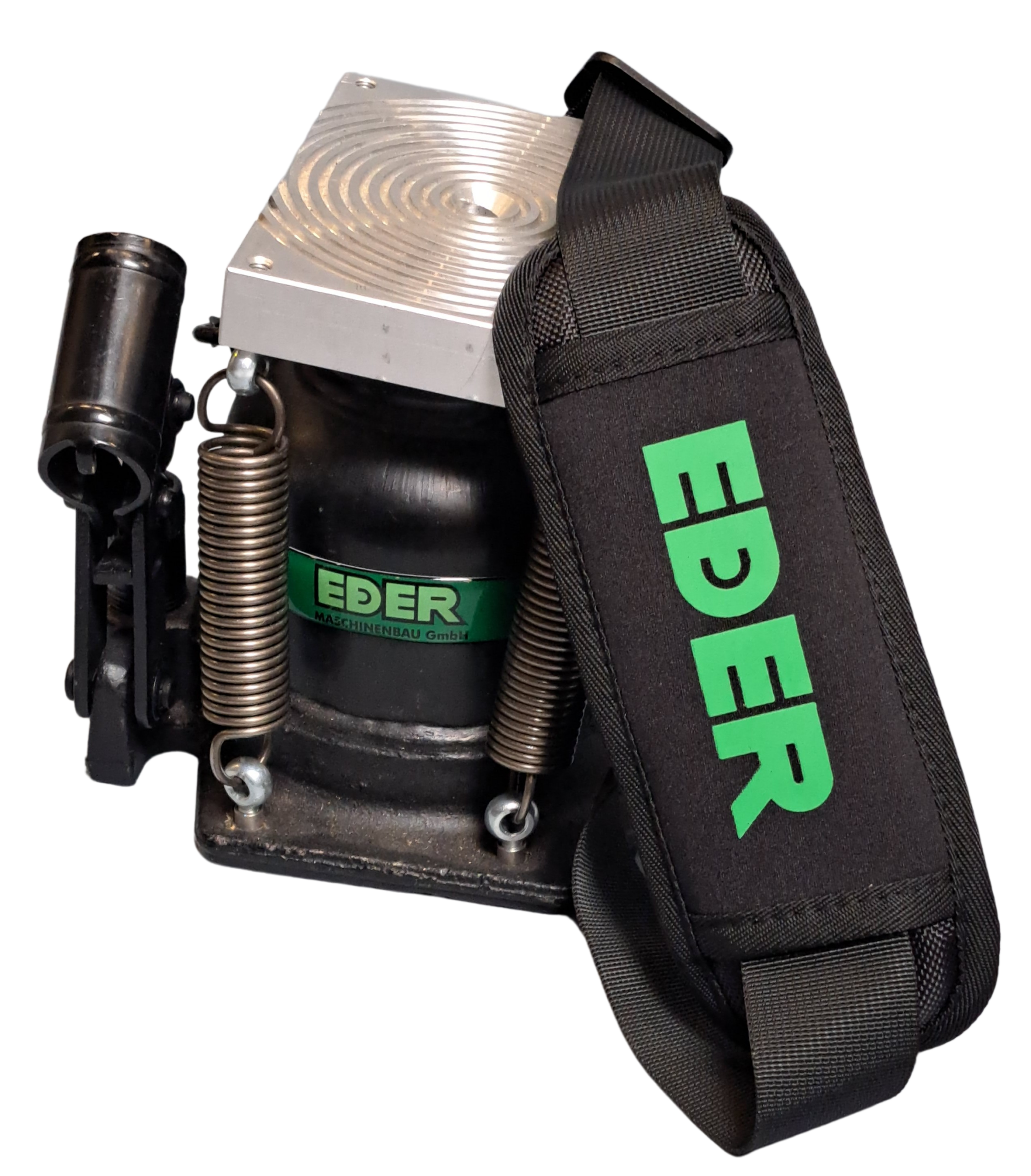

The EDER Low Jack – Hydraulic Felling Jack is designed to be used in timber and heavy timber harvesting and are an alternative to hammering in a felling wedge.
Compared to classic wedging with a felling wedge, the EDER Low Jack – Hydraulic Felling Jack has the following advantages:
• Effort-saving and ergonomically favourable work due to high lifting forces and ratios.
• Increased safety when felling on slopes.
• Danger of falling deadwood is reduced through low-vibration lifting.
• If the lifting height is too low, the jack can be readjusted by placing a load-bearing wooden board underneath.
Technical specifications for EDER Low Jack – Hydraulic Felling Jack
Weight: 9 kg
Stroke: 100 mm
First 40mm 17t lifting force
On the remaining 60mm 11t lifting capacity
Installation height: 140 mm
Height adjustment: 30 mm
Lifting rod: 500 mm
