The EDER Titan 80 mechanical felling wedge is a revolutionary aid to felling large trees.
It is an alternative to the traditional hammer and wedges and is more efficient and safer to use.
The wedge can exert a force of 25 tons and is much easier on the operator requiring very little physical effort to operate.
It is also safer as you are less likely to shake dead limbs from the tree as you can when hammering in wedges.
This makes the EDER Titan 80 mechanical felling wedge brilliant when dealing with ash die-back as you are less likely to dislodge dead branches when felling diseased trees.

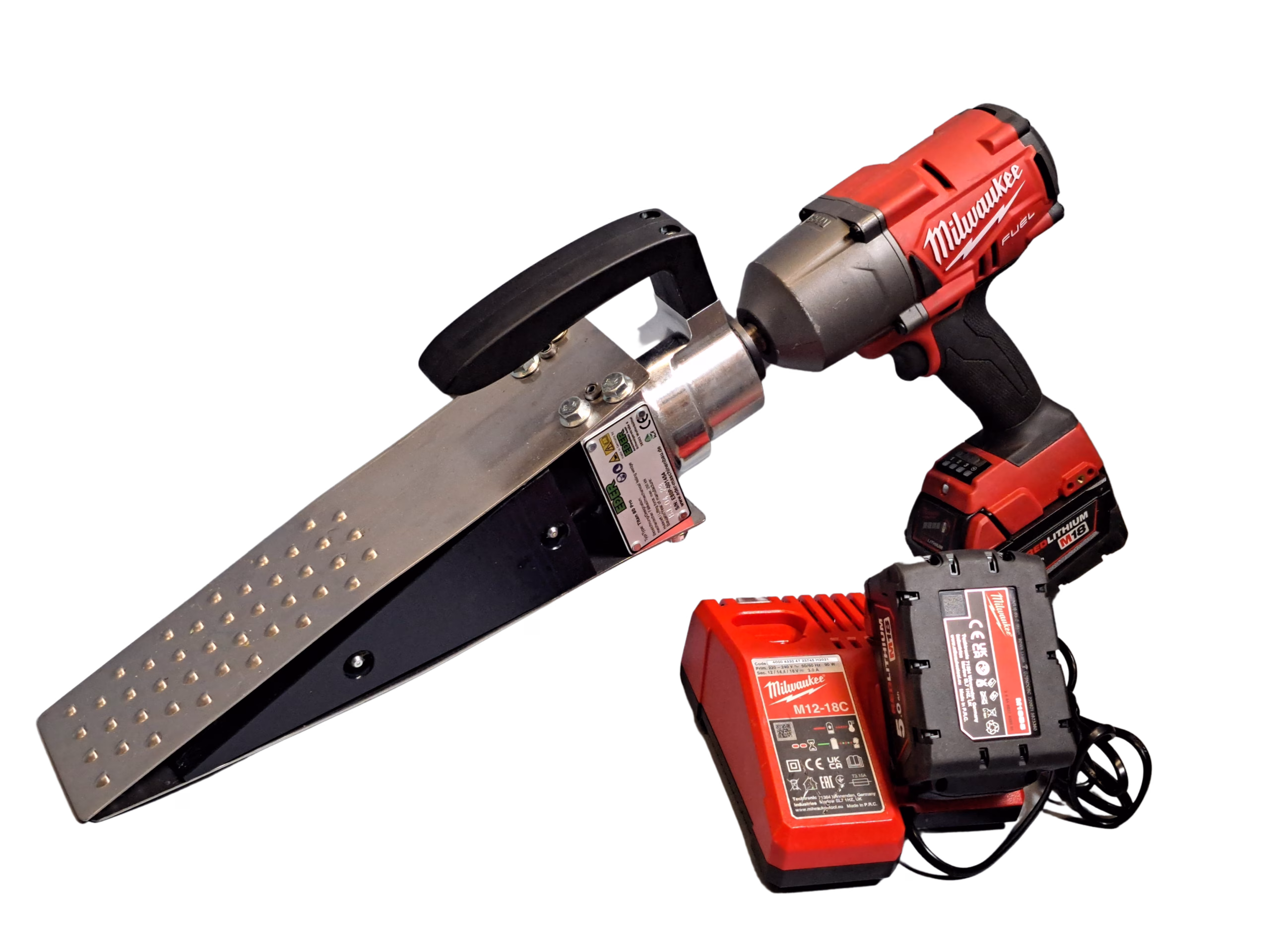

The EDER Titan 80 mechanical wedge can also be used in conjunction with a cordless impact wrench. The impact wrench must have less than 1000Nm of torque.
At only 5.7kg the Titan 80 is small enough and light enough to carry on to site easily so it is always available should you need it to assist when felling a tree.
Check out this independent review from one of our customers:
Or download the operators manual:
Technical data and design
Lifting wedge height 80mm
Lifting wedge width 90mm
Lifting wedge length 224mm
Wedge feed distance 170mm
Lift amount per rotation 5mm
Max. lifting capacity 25t
Max. torque 300Nm (corresponds to 70kg at the ratchet)
Length of the ratchet 400mm
Covered and sealed screw drive and bearing
Spring steel plates with gripping lugs
Lifting wedge made of high-performance plastic
Can be used with a cordless impact wrench
Credit to Uppsala Trädvård AB for the review and brilliant action photos.
