Description

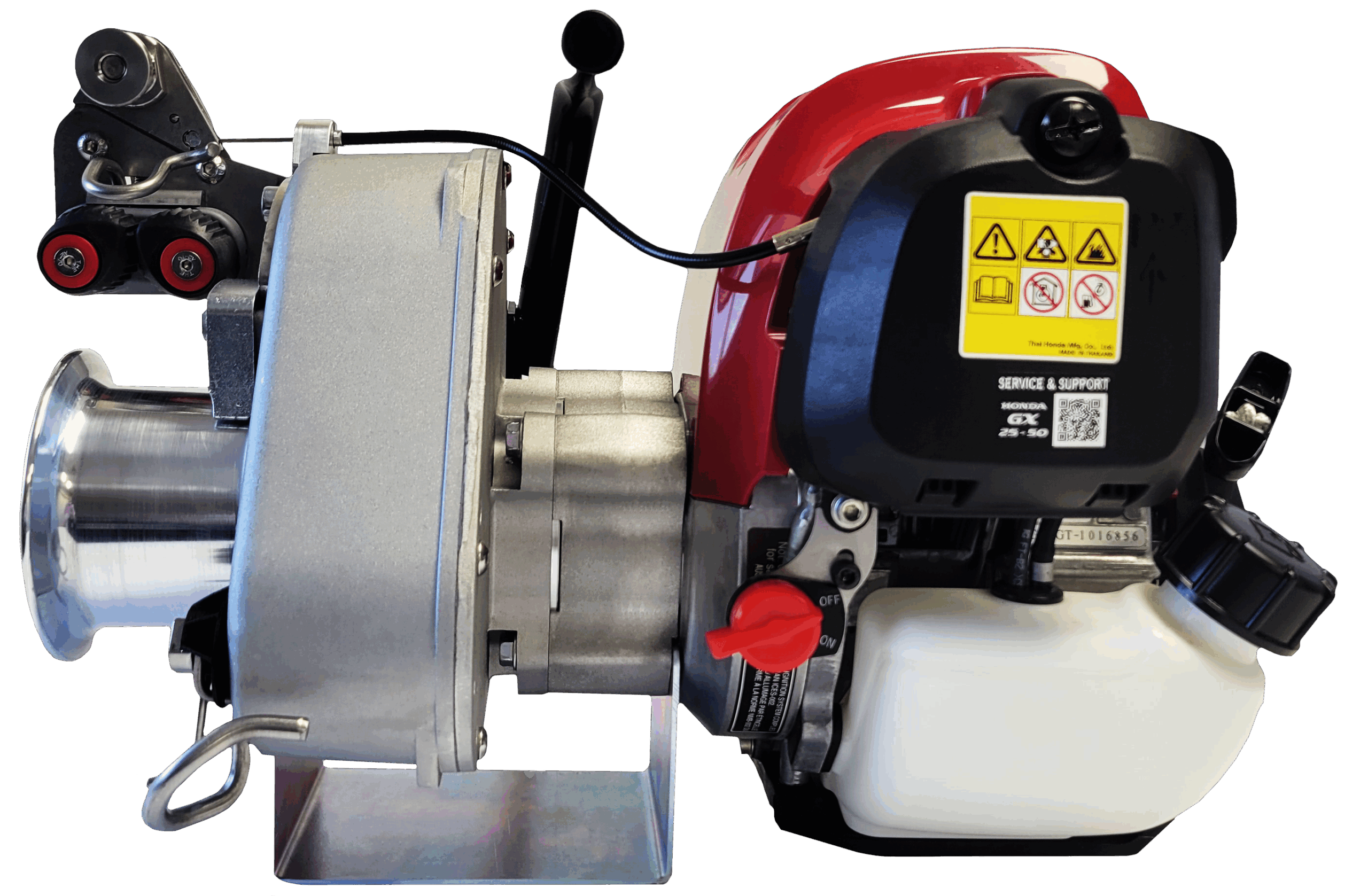

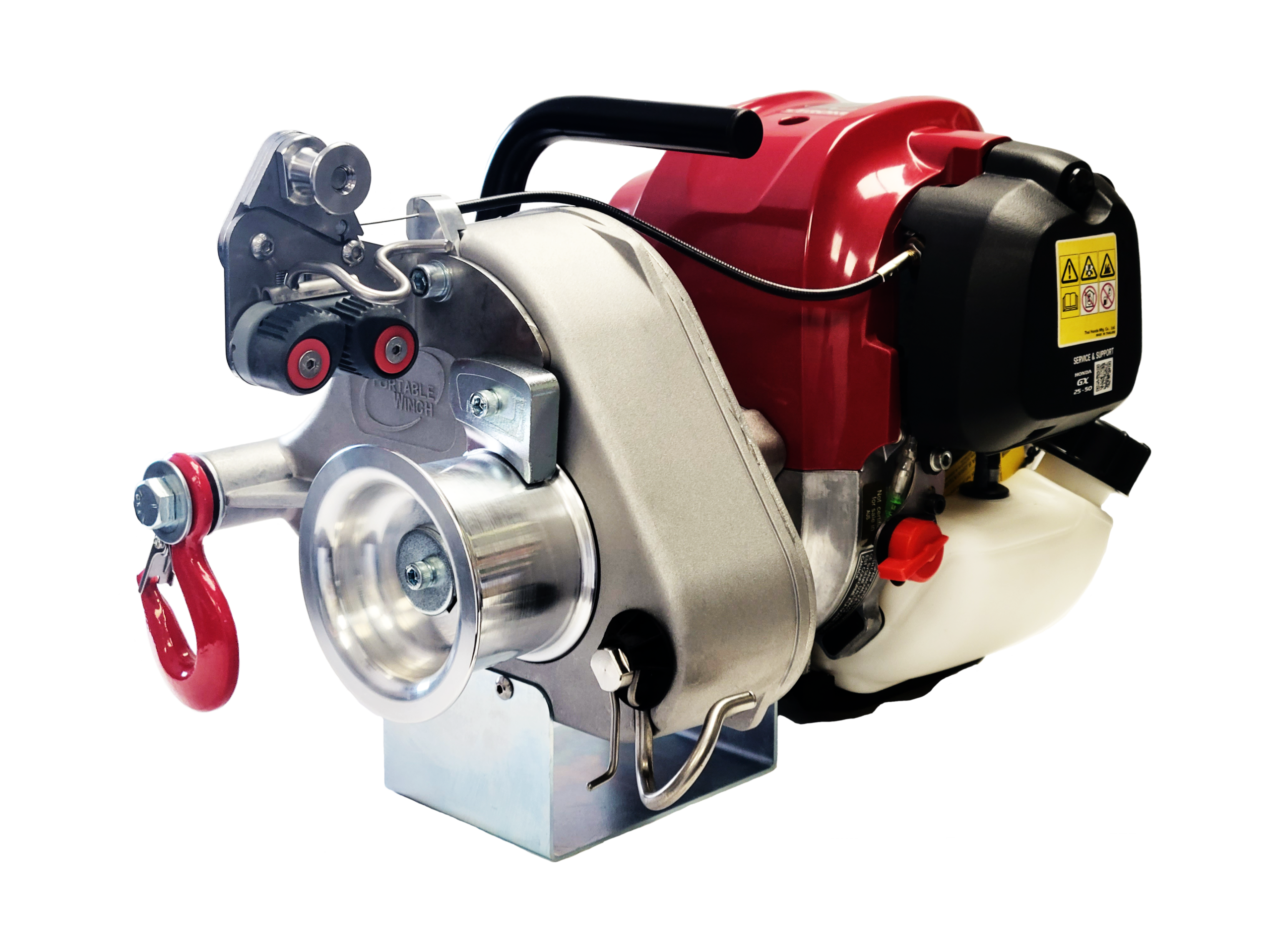

Portable Winch Co. hits once again with the all-new portable capstan winch PCW4000 with quick release automatic anti roll-back device!
This brand-new model is powered by the Honda 360° inclinable 4-stroke engine GX50. It also has a centrifugal clutch that activates when you pull the rope. When the rope is released, the drum stops spinning and the quick release automatic anti rollback device does its job and holds the load in position!
You can also disengage the rope in one simple movement!
A light, powerful, safe and very simple winch to operate. Perfect for all types of work, whether to pull logs, directional felling, pull a big game, get a vehicle out of trouble, pull a boat, a dock or for any other projects, this new winch will be the ideal tool !
QUICK RELEASE AUTOMATIC ANTI ROLL-BACK MECHANISM
The Portable Winch Co. engineering team strikes again by designing this simple and ingenious device!
As soon as you pull the rope that goes through the ARM, the centrifugal clutch activates, and the winch begins to pull. As soon as the rope is released, the drum stops rotating and the automatic mechanism does its job by holding the load in position! Disengage the rope in one simple movement! Nothing is easier.
HONDA 4-STROKE GX50 360° INCLINABLE ENGINE
This Honda’s GX50 engine offers high output and light weight with excellent fuel efficiency. It’s the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage. Among its many features, smooth performance, proven reliability, easy starting, easy to use and maintain and emissions compliant!
This makes it perfect for all sorts of arboriculture and forestry applications:
Skidding logs out of hard to access places.
Safely dealing with hung up or windblown trees.
Assisted felling.
The PCW4000 is also perfect for stalkers who wish to recover deer carcasses or boaters / sailors who need to pull boats up an incline.
This winch is not rated for lifting. If you need to lift with this winch consider adding the ISC Progress Capture Pulley Single (PCA-1271). Or you can swap to the Portable Winch Company – PCH1000 or Portable Winch Company – PCH2000.
Click here to download the PCW4000 flyer.
CAPACITY
Maximum Pulling Force: 1000 kg
Double Line Pulling Force: 2000 kg
SPEED
76 mm drum : 13.4 m/min
ROPE
Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter (metric) : 10 mm
Maximum Diameter (metric) : 12 mm
Ideal diameter (metric) : 10 mm
ENGINE/MOTOR & GEAR BOX
Engine/Motor : Honda 4-stroke GX50 – 50cc – all positions
Clutch : centrifugal
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage helical spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 200:1
Brake : quick release automatic anti roll-back device
Work Cycle : Continuous
CAPSTAN DRUMS
Standard : 76 mm
WEIGHT & DIMENSIONS
Weight (metric) : 12 kg
Length (metric) : 30 cm
Width (metric) : 42 cm
Height (metric) : 28.5 cm
ANCHOR
Included : Polyester sling 60 mm x 2 m (PCA-1260)
