Portable Winch Company – PCW5000

£1,295.00 + VAT (£1,554.00)

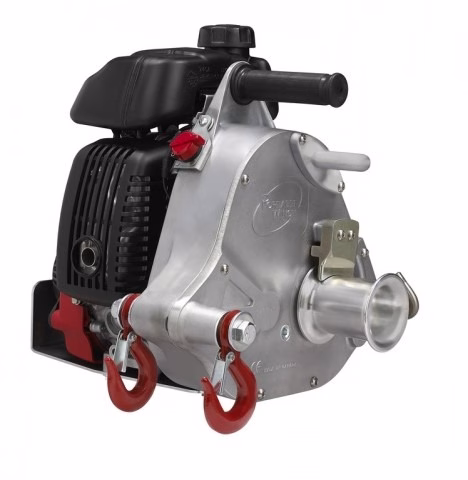

The PCW5000 is a portable capstan winch with a 1000 Kg pulling capacity.

Includes PCA-1260 – 2 Ton Sling
Includes HONDA 4-Stroke Oil 10W30 SJ 600ml

Portable Forestry Winch - PCW5000
1 × Portable Winch Company – PCW5000 (Winch Only)

In stock

Polyester Sling 60mm x 2m (PCA-1260)
1 × Polyester Sling 60mm x 2m (PCA-1260)

In stock

Description

The PCW5000 is a portable capstan winch with a 1000Kg pulling capacity.

PCW5000 - skidding log

These amazing winches are made in Canada by the Portable Winch Company.

The PCW5000 portable capstan winch is powered by a 50cc Honda 4 stroke engine – this makes it very powerful and ultra-reliable.

The 4 stroke engine means the PCW5000 runs on neat petrol and has a separate sump with oil. This type of engine is easy to start and quiet when running.

The PCW5000 weighs only 16kg meaning it is easily carried on to site.

This makes it perfect for all sorts of arboriculture, woodland and forestry applications:

Skidding logs out of hard to access places.

Safely dealing with hung up or windblown trees.

Assisted felling.

The PCW5000 uses double braided polyester low stretch rope and because it is a capstan winch the rope can be of any length.

PCW5000 - capstan view

The rope is attached to the object to be moved and wound three or four times around the capstan drum. When the engine is running, the 57 mm capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object.

This winch is not rated for lifting. If you need to lift with this winch consider adding the ISC Progress Capture Pulley Single (PCA-1271). Or you can swap to the Portable Winch Company – PCH1000 or Portable Winch Company – PCH2000.

Product details:

CAPACITY

Maximum Pulling Force With Standard Drum (metric) : 1,000 kg
Double Line Pulling Force With Standard Drum (metric) : 2,000 kg
Maximum Pulling Force With Optional Drum (metric) : 700 kg
Double Line Pulling Force With Optional Drum (metric) : 1,400 kg

SPEED
57 mm drum : 12 m/min
85 mm drum : 18 m/min

ROPE
Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter (metric) : 10 mm
Maximum Diameter (metric) : 13 mm
Ideal diameter (metric) : 12 mm

ENGINE/MOTOR & GEAR BOX
Engine/Motor : Honda 4-stroke GXH50 cc
Clutch : N/A – Direct Drive
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 110:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

CAPSTAN DRUMS
Standard : 57 mm
Optional : 85 mm

WEIGHT & DIMENSIONS
Weight (metric) : 16 kg
Length (metric) : 36,2 cm
Width (metric) : 37,1 cm
Height (metric) : 36,1 cm

ANCHOR
Included : Polyester sling 60 mm x 2 m (PCA-1260)
